Lulo – Systemd View

The SYSTEMD page talks to systemd the way systemd’s own tools do – over sd-bus, not by shelling out to systemctl – querying both the system and user managers, merging file-enablement with runtime state, and computing true reverse-dependency closures from the bus interface’s inverse-relation properties.

Table of Contents

1. What the page shows
2. How the inventory is gathered
3. Services view
4. Deps view: real reverse dependencies
5. Config view
6. Editing and snapshots
7. See also

1. What the page shows

SYSTEMD is a service inspection and editing surface built for visibility first, with safe file-backed editing before any broader lifecycle management. It runs on the standard client/daemon split: a backend thread in the frontend requests a snapshot from lulod, which does the actual sd-bus work and caches the result (see Process Model & IPC).

2. How the inventory is gathered

The daemon links libsystemd and opens both buses – sd_bus_open_system and sd_bus_open_user – gathering each scope separately. For each manager it makes two pattern-filtered calls (the pattern restricts results to *.service):

• ListUnitFilesByPatterns -> the unit file enablement state (enabled / disabled / static / …).
• ListUnitsByPatterns -> the runtime state: load, active, sub, description, and the unit’s D-Bus object path.

The two result sets are merged per (scope, unit), unit names are \xNN-decoded back to their human form, and the list is sorted by a health rank so failed and running units float to the top, inactive ones sink.

3. Services view

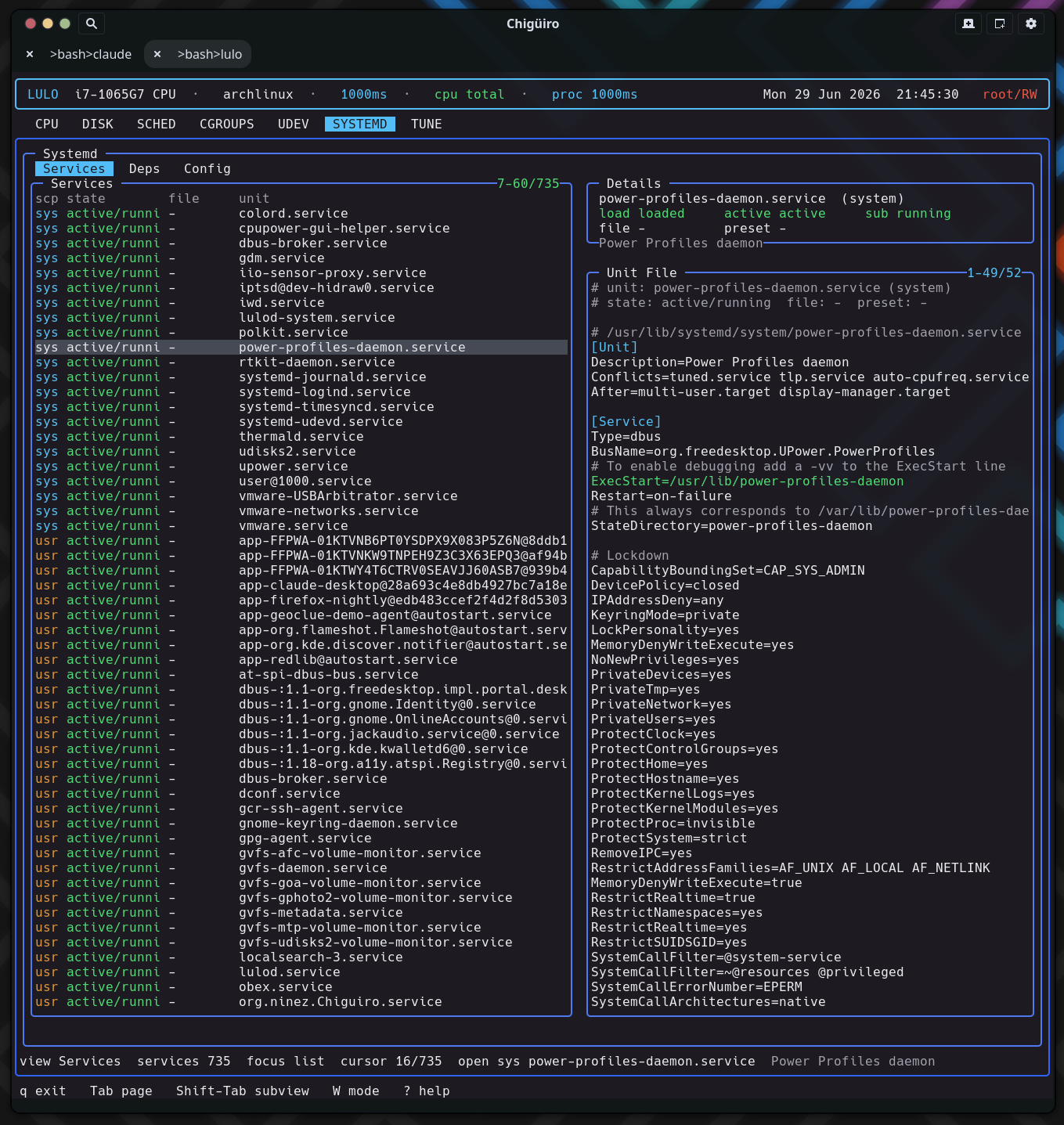

The Services list is the merged inventory. The same list backs both Services and Deps – only the preview pane differs between them.

Selecting a unit previews its actual on-disk definition. The daemon resolves the unit’s object path (via LoadUnit), reads the FragmentPath, SourcePath, Following, and DropInPaths properties over the bus, and dumps each of those files – so the preview is the real fragment plus its drop-ins, not a synthesized summary.

4. Deps view: real reverse dependencies

The Deps view is the technical standout. Rather than parsing systemctl list-dependencies --reverse, it asks systemd’s Unit interface directly for the inverse of every dependency relation – reading twelve reverse-relation properties over the bus:

RequiredBy, RequisiteOf, WantedBy, BoundBy, UpheldBy, ConsistsOf, TriggeredBy, OnSuccessOf, OnFailureOf, ReloadPropagatedFrom, StopPropagatedFrom, ConflictedBy.

Each list is sorted and printed under a # <Property> header, with dependency lines colored by unit suffix (.target, .service, .socket, .timer). The result is the full reverse closure across all twelve relation types in a single pass – the answer to “what else depends on this, and how?” before you change or remove a unit.

5. Config view

The Config view lists .conf (and .conf.pacnew) files under /etc/systemd, scanned lazily only when you enter the view. .pacnew files – pending package-manager config updates – are highlighted in orange so you notice config that needs reconciling. Selecting a file previews its contents with key=value lines colored.

6. Editing and snapshots

SYSTEMD uses the shared external-editor handoff exclusively – there is no inline editing. The edit path is the selected unit’s FragmentPath (in Services / Deps) or the config-row path (in Config). Pressing i opens it in $VISUAL / $EDITOR; privileged writes are committed through lulod-system’s atomic, allowlist-scoped edit protocol, so editing a unit under /etc/systemd or /usr/lib/systemd never requires the TUI itself to run as root.

The cached snapshot carries the merged rows plus three separate preview buffers – one each for the Services fragment, the Deps closure, and the Config file – so switching views does not re-fetch. The unit list refreshes on a TTL; the preview is re-rendered cheaply when the selection moves.

Current scope
