Lulo – Architecture Overview

This page is the system map for Lulo: the three processes, the privilege boundary between them, where each subsystem lives, and how a request travels from the TUI down to a privileged write.

Table of Contents

  1. What Lulo is
  2. Process model
  3. Privilege model
  4. IPC boundaries
  5. Source layout
  6. Page modules
  7. Design rules
  8. Document index

1. What Lulo is

Lulo is a terminal-based Linux management and observability tool. It renders a Notcurses TUI over a split daemon backend so that live inspection (CPU, processes, disk) and privileged policy work (scheduler enforcement, system-file edits) can share one cohesive interface without the frontend ever running as root.

The project is intentionally a three-process design rather than one monolithic privileged binary. The frontend draws and handles input, a session daemon caches state and integrates with the desktop, and a privileged daemon is the only component that writes system files or enforces scheduler policy. Everything below follows from that split.

Lulo process architecture lulo -- TUI frontend (Notcurses) rendering, input decoding, page orchestration, external-editor handoff CPU proc tree DISK usage SCHED policy CGROUPS hierarchy SYSTEMD units TUNE tunables UDEV rules user runtime socket snapshots, edit requests, focus state lulod -- user / session daemon cached state, desktop integration, keeps blocking work off the UI snapshot caches SCHED / SYSTEMD / TUNE CGROUPS / UDEV focus integration consumes focused PID, forwards to system daemon edit / apply proxy stages file-backed edits, relays privileged operations focus providers report the focused window PID lulod-focus-kde (KWin script) lulod-focus-gnome (Shell ext) polkit / systemd system service -- privilege boundary /run socket lulod-system -- privileged system daemon scheduler enforcement, privileged edits, long-lived system policy scheduler engine loads /etc/lulo config, scans /proc, applies nice / policy / RT / I-O priority privileged edit sessions direct write / delete / commit back to system files system file operations systemd units, cgroup controls, udev rules / hwdb, tune writes /etc/lulo/scheduler profiles / rules /proc process scan /sys + /sys/fs/cgroup tunables / controls systemd units config / drop-ins udev rules / hwdb device config lulo-admin narrow privileged helper used by the polkit / pkexec path for one-shot elevated actions

2. Process model

Lulo runs as three cooperating processes, each with a tightly scoped responsibility. The frontend is the only one a user interacts with directly; the two daemons sit behind sockets.

Process Scope Responsibilities
lulo UI Notcurses rendering, input handling, editor handoff, page orchestration
lulod User / session Session-facing cache and state, focus integration, frontend IPC, page snapshots
lulod-system Privileged / system Scheduler enforcement, privileged edit / apply operations, long-lived system policy
Helper Purpose
lulo-admin Narrow privileged helper used by the current polkit / pkexec path
lulod-focus-kde KDE / Qt focus helper that reports the currently focused window PID
lulod-focus-gnome GNOME focus helper; relays the PID published by the lulod-focus@ninez.org Shell extension

The frontend stays small and responsive because anything that blocks – scanning /proc, building a systemd inventory, reading a deep cgroup tree – happens in lulod, not in the render loop. See Process Model & IPC for the request/response detail.

3. Privilege model

The defining property of the architecture is that the TUI never writes system files and never runs as root. Privilege is concentrated in one place and reached only through a socket.

Layer Trust What it may do
lulo Unprivileged user Read public state, render, request edits, hand off to $EDITOR
lulod Unprivileged user Cache snapshots, integrate focus, proxy edit/apply requests
lulod-system Privileged (system service) Apply scheduler policy, write/commit system files, mutate cgroup / sysfs / procfs

A privileged write always crosses the boundary explicitly: the frontend stages an edit, lulod relays it, and lulod-system performs the write and commits it back. The one-shot lulo-admin helper exists for the narrow polkit / pkexec elevation path. This keeps the attack surface of the elevated component small and auditable.

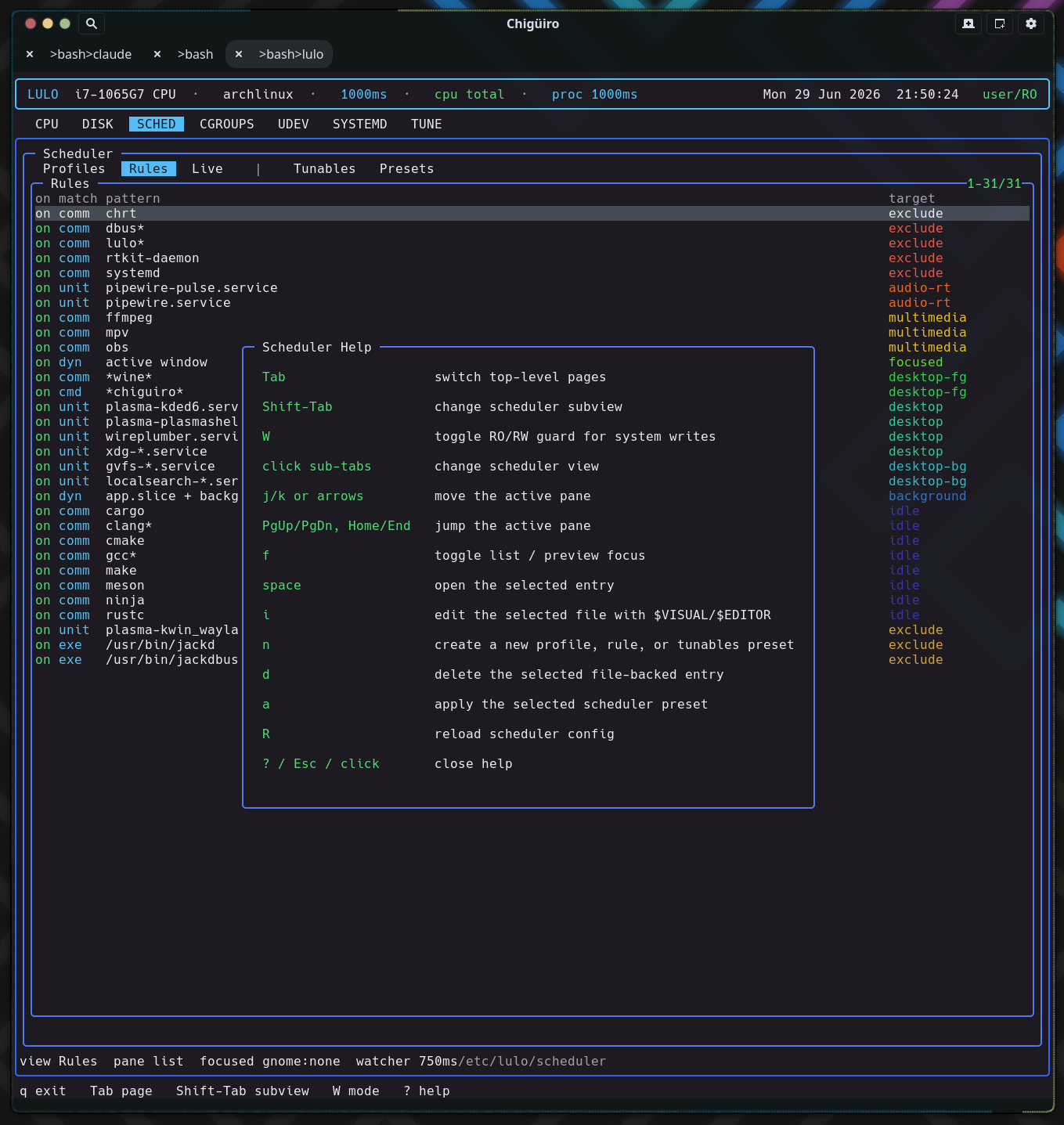

Lulo TUI: page bar, SCHED Rules, and the help overlay in user/RO mode
The page bar (top) switches Lulo’s seven views; here SCHED → Rules with the help overlay, and the header showing user/RO mode — the unprivileged default.

4. IPC boundaries

There are exactly two IPC boundaries, each a Unix socket, each carrying a narrow message set.

Boundary Transport Used for
lulo <-> lulod Unix socket under the user runtime dir SYSTEMD, TUNE, CGROUPS, UDEV, scheduler snapshots, focus / session-facing state
lulod <-> lulod-system Unix socket under /run Scheduler reload / scan state, focus updates, privileged edits, file apply / delete operations

Shared IPC code lives in one place so both ends stay in sync:

5. Source layout

Path Purpose
src/app TUI shell, input handling, page rendering, widget drawing, help overlay
src/core Shared page models and user-daemon client backends
src/daemon lulod, lulod-system, focus helpers, privileged edit / scheduler code
src/shared IPC, proc metadata, and shared helpers
src/admin Narrow admin helper entrypoint
include Public / internal headers

The build also supports running directly from the repo checkout for development, so the same layout works installed under /usr or in-tree.

6. Page modules

Each TUI page pairs an app-layer renderer with one or more core-layer models and backends. The renderer owns drawing and interaction; the model owns data and refresh.

Page App module(s) Core module(s) Subviews
CPU / proc main app shell lulo_model.c, lulo_proc.c main CPU + proc tree
DISK lulo_widgets.c lulo_dizk.c n/a
SCHED lulo_sched_page.c lulo_sched.c, lulo_sched_backend.c Profiles, Rules, Live
CGROUPS lulo_cgroups_page.c lulo_cgroups.c, lulo_cgroups_backend.c Tree, Files, Config
SYSTEMD lulo_systemd_page.c lulo_systemd.c, lulo_systemd_backend.c Services, Deps, Config
UDEV lulo_udev_page.c lulo_udev.c, lulo_udev_backend.c Rules, Hwdb, Devices
TUNE lulo_tune_page.c lulo_tune.c, lulo_tune_backend.c Explore, Snapshots, Presets

This app / core / backend triad is the repeating unit of the frontend. New pages follow the same shape: a renderer, a model, and a backend that talks to lulod.

7. Design rules

The architecture is held together by a handful of rules. They are the reason the split is worth its overhead.

8. Document index

Document Covers
Process Model & IPC The two sockets, message flow, and how a privileged edit travels end to end
Scheduler Profiles, rules, policy resolution, enforcement loop, and focused-app policy
Focus Providers KDE and GNOME focus detection and the provider contract
CPU & Process View CPU sampling and the live process tree
Disk View Filesystem usage dashboard
Cgroups View Cgroup hierarchy, control files, and related config
Systemd View Units, reverse dependencies, and config editing
Tune View Tunables explorer, snapshots, and presets
Udev View Rules, hwdb, and live device inspection
Install & Packaging Build, install, services, and packaging flow
